110L Performance Type Laboratory Equipment Vertical Autoclave Steam Pressure Sterilizer Factory Direct Sales Factory In China

The autoclave is the equipment which utilizes the pressure saturated steam for sterilizing goods quickly and reliable. It is a perfect equipment for sterilizing the medical equipment, dressings, glassware, liquor culture mediums, etc. We support OEM, and the MOQ is 1.

  • Volume :

    110L
  • Item No :

    BXM-110EI
  • Order(MOQ) :

    ONE
  • Payment :

    T/T
  • Product Origin :

    CHINA
  • Power Supply :

    220±10%V, 50±2%Hz
  • Max. Working Temperature :

    135°C
  • Internal Dimensions [mm] :

    535*640*1275
  • Net Weight :

    111kg
  • Baskets[mm] :

    Ø360*230
New Products
Product Description

PMMA II microcomputer intelligent control system;

Touch screen enables real-time viewing of the operating parameters and working status;

Positive pressure pulse, 6 level cold air discharge procedure;

Equipped with 8 fixed programs +6 custom programs;

After sterilization, the 6-stage pressure relief rate is optional;

With three-level authority management;

The whole machine anti - hot design, heat insulation and beautiful;

Hand wheel quick opening structure with dual protection of pressure self-locking and self-inspection;

Equipped with 100-hour countdown reservation function;

One key electric drainage;

Equipped with boiling point setting function;

Standard equipped with condenser + air cooling + secondary water-cooling rapid cooling system;

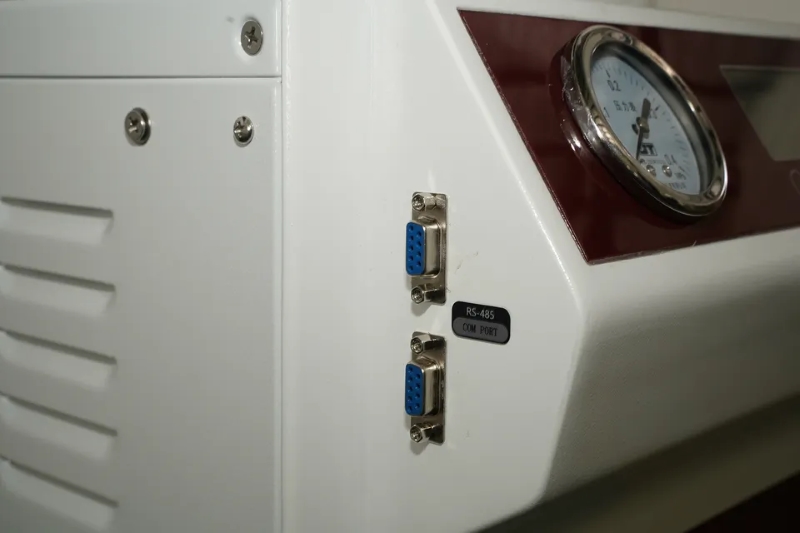

One waterproof socket, two 485 ports and G1/2A standard test pipe thread holes;

Fault detection function, over temperature shutdown protection, water cut-off protection, overpressure self-relief protection, anti-hot protection, overload protection;

Short circuit protection, leakage protection, independent electronic overvoltage protection and other multiple security.



Product Details

Model BXM-110EI
Volume [L] 110
Drum Diameter [mm] 400
Power Supply [V, Hz] 220±10%, 50±2%
Environment Temp. [°C] 5~40
Environment Humidity [%RH] 20~80
Power [kW] 3.5
Sterilization Temp. [°C] 105~135
Temp. Fluctuation [°C] ˂±1
Temp. Uniformity[°C] ±1
Melting Temp. [°C] 50~100
Heat Preservation Temp. [°C] 40-60
Sterilization Timer Range [min] 0-120
Melting Timer Range [min] 0-6000
Heat Preservation Timer Range [min] 0-6000
Reservation Range [min] 0 ~ 99hr60min
Design Pressure [MPa] 0.38
Working Pressure [MPa] 0.22
Pressure gauge indicating Range [MPa] 0-0.4
Housing Dimensions W×D×H [mm] 535*640*1275
Basket Dimensions [mm] Ø360*230
Number of Baskets [pc] 3
Net Weight [kg] 111
Gross Weight [kg] 130
Package Size [mm] 670*780*1440


Product Display
vertical autoclave
Steam Vertical Sterilization
110L Laboratory Equipment Sterilizer
Packaging & Shipping
Packaging Details
1.Standard exporting package.
2.Cartons packaged with wooden pallet.
3.As so customized specifications such as logo or others.
Delivery Time
20 days

FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?
Autoclave,Incubator,Drying oven,Test Chamber,Clean bench and other laboratory equipment.

3. why should you buy from us not from other suppliers?
We are a professional manufacturer of laboratory equipment and life science instruments. We have 25 years of design and R & D experience and focus on control solutions of temperature and humidity.

4. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Type: T/T;
